Yale University Law School

A waterproofing solution that kept the building dry through three seasons of heavy rain.

PROJECT DETAILS

Location

New Haven, CT

Completion Date

2015

Industry

Education

Project Type

Planter Waterproofing

Systems Used

RMA System

Applicator

Ernest Peterson, Inc.

PRODUCTS USED

Laurenco Adhesive

Laurenco Roll

Laurenco PMMA Catalyst

Laurenco PMMA Flashing Resin

Laurenco PMMA Fleece

Laurenco Butyl Seal Tape

The CHALLENGE

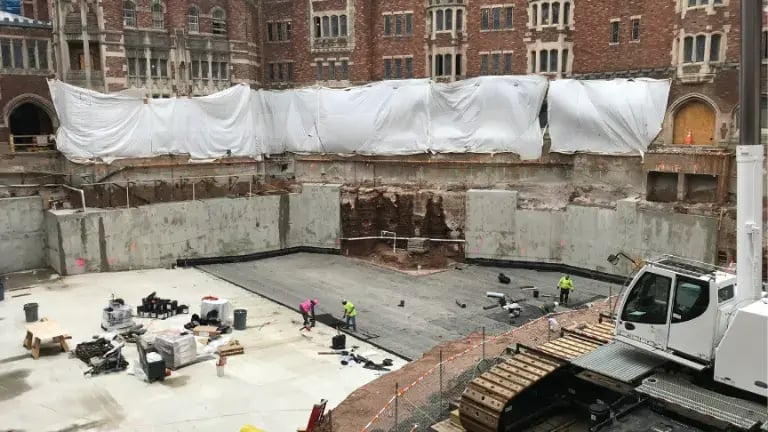

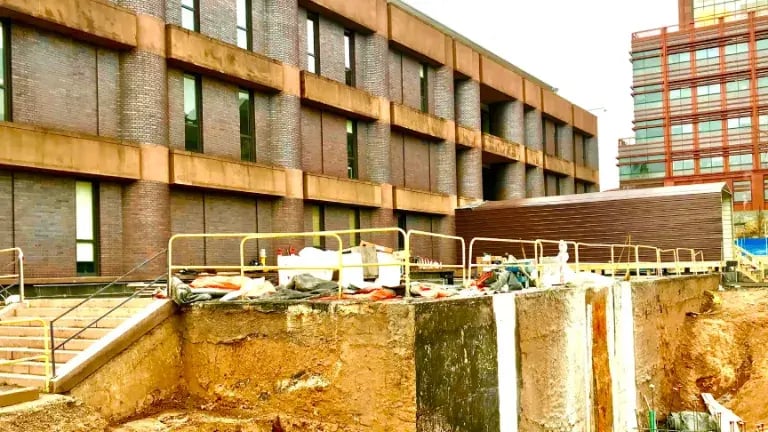

Yale University’s ambitious capital improvement project to provide an amenity space under the existing law school courtyard necessitated the complete excavation of the interior grounds. It required the erection of new structural retaining and foundation structures in support of the existing building and the new space, prior to replacing the landscape of the interior garden. This was all to be constructed while the building was in use through the summer into the autumn when class was in session.

The SOLUTION

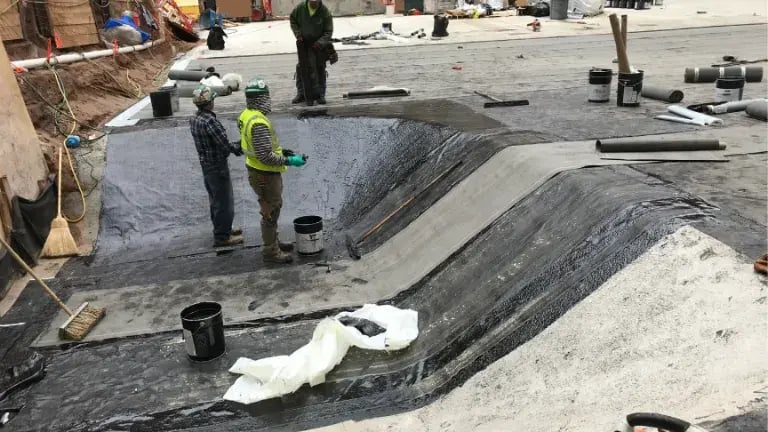

The Laurenco waterproofing system was configured into a below grade blindside foundation waterproofing. It was installed onto a false perimeter wall and mud slab prior to the placing of the structural concrete foundation walls and slab. The modular nature of the sheet rolls and adhesive cans and their cold process application expedited the logistics of the installation in the confined yard as no specialized machinery, pumps, torches, or kettles were in tow or necessary. The lack of the need for these flame and heat elements for installation eliminated the possibility of smoke and fire hazards, and the low odor profile of the RMA material allowed for the successful installation of the waterproofing with little to no disruption to class in session.
